Interacting with object operation events

⚠️ Note

Sample codes are for demonstration purposes only. Before using in production, add proper error handling such as try-catch blocks, null checks, and input validation.

Overview​

This sample shows how to support object operation events in the ShellUI module by registering event handlers in OnNewShellUI.

The sample implementation demonstrates checkout-related events:

  • CheckOutObjects (before operation)
  • ObjectsCheckedOut (after operation)

You can apply the same pattern to other object operations supported by ShellUI Events.

Creating the application structure​

Creating the application definition file​

appdef.xml
<?xml version="1.0" encoding="utf-8"?>
<application xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="http://www.m-files.com/schemas/appdef-client-v5.xsd">
    <guid>e5236c84-a251-4611-b1cf-12549a05c86a</guid>
    <name>UIExt2</name>
    <version>1.1.1</version>
    <description>Blocks document check out requests when in a controlled state</description>
    <publisher>M-Files Corporation</publisher>
    <copyright>Copyright M-Files Corporation</copyright>
    <enabled-by-default>true</enabled-by-default>
    <modules>
        <module environment="shellui">
            <file>main.js</file>
        </module>
    </modules>
</application>

Object operation event pattern​

Use this pattern for each object operation event:

  1. Register the event in OnNewShellUI.
  2. Read event payload values.
  3. Run validation or business rules.
  4. Return a promise that resolves to true when logic is satisfied, or reject/return an error object to block the operation with additional concern to the user.

Example: CheckOutObjects (before operation)​

This example validates selected objects belongs to document type before checkout.
If validation fails, checkout is blocked and an error message is shown.

main.js
function OnNewShellUI(shellUI) {

    // CheckOutObjects - Before checkout is requested
    shellUI.Events.Register(MFiles.Event.CheckOutObjects, function(objIds) {

        // Check each object being checked out - Blocks for objects other than documents.
        for (var i = 0; i < objIds.length; i++) {

            // Skip check if the object is not a document.
            if (objIds[i].type !== 0) {
                return new Error( "Document objects are only allowed to checkout" );
            }
        }

        // All checks passed, allowing checkout
        return Promise.resolve(true);
    });

}

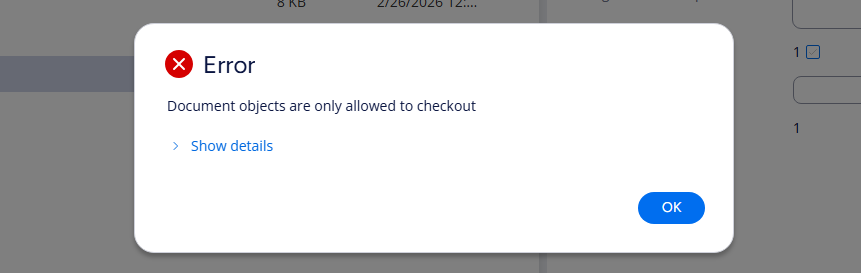

Rejecting the promise by returning an Error object with a user message displays a dialog like the image below.

alt text

Example: ObjectsCheckedOut (after operation)​

This example runs after checkout succeeds.
It builds a user-facing summary and shows a confirmation message.

main.js
function OnNewShellUI(shellUI) {

    // ObjectsCheckedOut - After checkout succeeded
    shellUI.Events.Register(MFiles.Event.ObjectsCheckedOut, function(checkedOutVersions, previousVersions) {

        // Build a message showing the checked out object versions
        var message = "Successfully checked out:\n";
        for (var i = 0; i < checkedOutVersions.length; i++) {
            var versionInfo = checkedOutVersions[i].object_version?.version_info;

            message += "\n- Title: " + (versionInfo?.title || "Unknown");
            message += ", Version: " + (versionInfo?.version?.internal_version || "?");
        }

        // Show message to user.
        shellUI.ShowMessage({
            caption: "Checkout Successful",
            message: message,
            icon: "info",
            button1_title: "Ok",
            defaultButton: 1,
            cancelButton: 1
        });
    });

}
